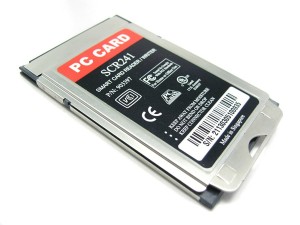

PCMCIA ¹æ½ÄÀÇ ½º¸¶Æ® Ä«µå ¸®´õ/¶óÀÌÅÍ, SCM SCR241ÀÔ´Ï´Ù.
(ExpressCard ½½·Ô¿¡´Â »ç¿ëÇÒ ¼ö ¾ø½À´Ï´Ù.)
ICĨÀÌ ÀÖ´Â ÃâÀÔÁõ Á¦ÀÛ.°ü¸®, ÇÏÀÌÆнº Ä«µå ÃæÀü µî¿¡ »ç¿ë °¡´ÉÇÕ´Ï´Ù.
¾Æ·¡ ¸µÅ©¿¡¼ À©µµ¿ì 7, 10 µîÀÇ µå¶óÀ̹ö ³»·Á¹ÞÀ» ¼ö ÀÖ½À´Ï´Ù.
http://www.scm-pc-card.de/index.php?page=download&function=show_downloads&lang=en&product_id=98
Technical specifications
Host Interface
PC-Card 8 bits I/O 5V
PCMCIA Type II
SmartCard Interface
- T=0, T=1 protocol support
- Memory card support through SCM MCard API
- Communication speed up to 344,105 bps
(PPS, Fl parameter)
- Frequency up to 8 MHz (PPS, Dl parameter)
- Support ISO 7816 Class A and AB SmartCard
SmartCard Connector
- 8 contacts - ISO location
- 100,000 insertions
- Sliding contacts
Power
- 68 pins PCMCIA connector
- Power through PCMCIA interface
Dimensions
LWH 84.5 x 54 x 5 mm
Weight 50 grams
Operating Temperature
0¡Æ to 50¡Æ Celsius
Operating System
Windows 95
Windows 98
Windows 98 SE
Windows ME
Windows NT
Windows 2000
Windows XP 32-bit
Windows XP 64-bit
Windows Vista 32-bit
Windows Vista 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows 8 32-bit
Windows 8 64-bit
Windows 10 32-bit
Windows 10 64-bit
Windows 2003 Server 32-bit
Windows 2003 Server 64-bit
Windows 2008 Server 32-bit
Windows 2008 Server 64-bit
Linux
MacOS X
API
PC/SC
CT-API (through wrapper on top of PC/SC)
OCF upon request
Approvals
FCC Class B part 15, cULus, CE, VCCI
Microsoft WHQL ME, 2000, XP
EMV Level 1
Environmental
ROHS
WEEE
|
|
|
