중고 제품입니다.

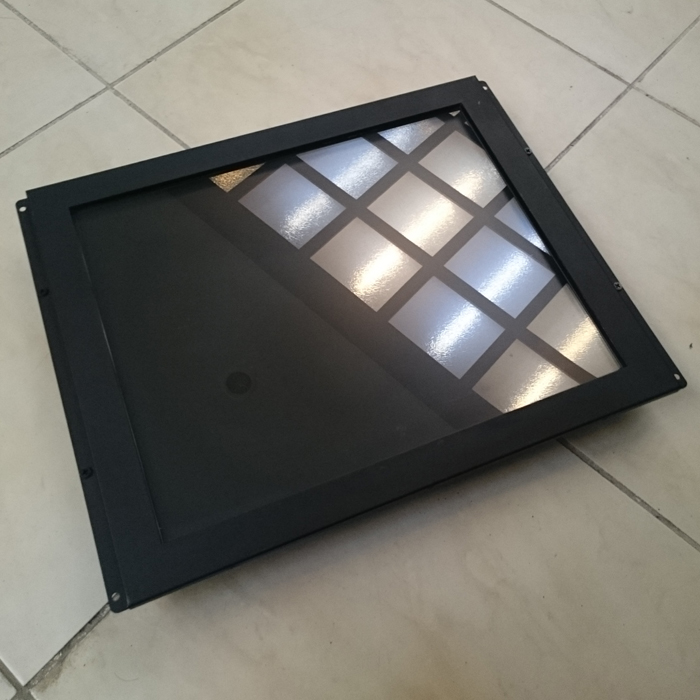

실재 제품을 찍은 사진입니다.
작동 잘 되는 국산 19인치 터치 모니터입니다.
드라이버는 아래 링크(제조사 홈페이지)에서 내려받을 수 있습니다.
(http://www.inexio.co.kr/07_download/download02.html)
< GENERAL DESCRIPTION >
Controller: Bulk Type Multi (Single) Touch Controller
Communication: USB 1.1/2.0 Full Speed (Optional RS232C)
MPU: AT91SAM7S64
Multi Touch support: Windows 2000/XP/Vista/7
Single Touch support: Windows 2000/XP/Vista/7, Linux Fedora 12.0
Power Mode: BUS Powered Mode only
Dual Monitor Support (2 Monitors)
< TOUCH SPECIFICATIONS >
Touch Input Method: Pen, Finger, Finger of gloved hand Activation
Touch Activation Force: No minimum touch activation force
Response Time: Touch -> 13.03 ms±10% / Drawing -> 23.62 ms±10%
Optics Cell Pitch: 5.3mm ± 0.2mm
Optics Number: 71(H) x 58(V)
Available Object Sizes for Touch: Touch -> Ø7mm / Drawing -> Ø8mm
Touch Durability: Over 600,000 single point touch
< MECHANICAL SPECIFICATIONS >
Housing: Black powder coated Metal
Touch Size (Out line): 440(W) x 365(D) x 10.3(H) [mm]
Packing Size: 650(W) x 280(D) x 480(H) [mm]
Useful Screen Area: 376(H) x 301(V) [mm]
Weight : 2.3 Kg
Glass: Transmission -> Min. 90% / Thickness -> 3.2 mm with Anti-vandal
< ELECTRICAL SPECIFICATION >
Operating Voltage: DC 4.5V ~ DC 5.5V
Power: Max 0.94W (5V, Max: 187mA)
ESD: Re-operation within 1minute when supplied 4KV Surge
|
| |
|
|
|
|
